UCP207-23

  • For shaft 1 7/16 inch
UCP207-23
Gross price
Excl. of VAT€ 26,70

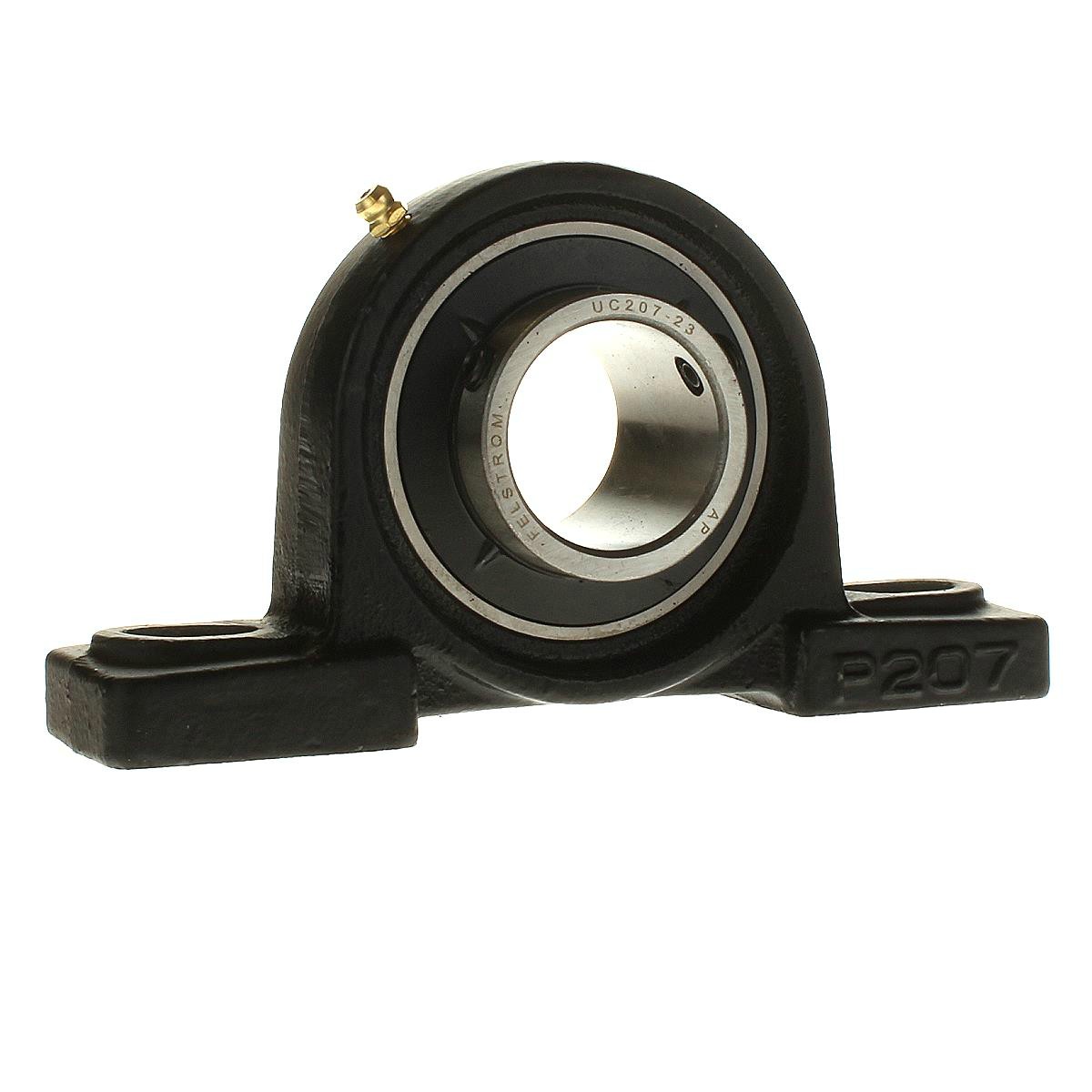

Cast iron UCP housing unit for shaft 1 7/16inch

Technical information

Felstrom’s UCP207-23 is a robust cast iron housing unit for 1 7/16 inch shafts (D1). The housing unit consists of bearing housing P207 and insert bearing UC207-23. Due to their great application flexibility, Felstrom cast iron housing units are our most popular variant. These cast iron housing units are often used in open applications providing space for lubrication as well as fitting and removal.

Felstrom housing units are characterised by their consistent quality and neat finish. All our housing units are available in cast iron, stainless steel (indicated by SS) and plastic (indicated by PSS). Our affordable housing units are individually packaged and available from our resellers.

Product details UCP207-23
  • d (inch)
    1 7/16
  • H1 (inch)
    1 7/8
  • L (inch)
    6 37/64
  • J (inch)
    5
  • A (inch)
    1 7/8
  • N (inch)
    21/32
  • N1 (inch)
    25/32
  • H2 (inch)
    45/64
  • B (inch)
    1.6869
  • S1 (inch)
    0.6890
  • Dynamic C
    25700
  • Static Co
    15200
  • Bearing
    UC207-23
  • Housing
    P207
  • G - Bolt size
    1/2
  • m (kg)
    1.60
